Transformer

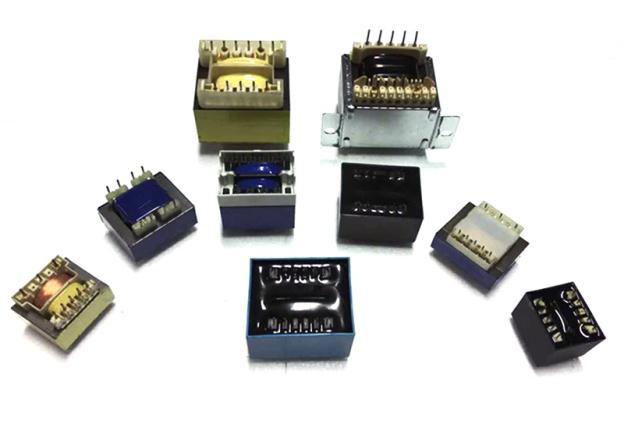

Pin Type Transformer

Pin type transformer is also called pin insert fire cattle. Pin insert is used to weld the primary and secondary windings of the transformer. Installed on the circuit board, transformer output provides power supply in the circuit, mainly used for various small appliances, control circuit board, etc.

Rated Working Voltage

500V Max 50/60Hz

Rated Power

100VA Max

Insulation Class

B/F class

Protection Grade

IP00，can be customized according to customer requirements

GB19212 《Safety of power transformers, power supplies》 GB13028《 Isolating transformers and safety isolating transformers》 SJ 3270 《Safety requirements for isolating transformers》

Request a Quote View Specifications

Need immediate assistance?

+86 19036501023

Technical Specifications

Parameter	Specification
Rated Working Voltage	500V Max 50/60Hz
Rated Power	100VA Max
Insulation Class	B/F class
Hi-pot	Primary - secondary, core - winding 3500Vac 50Hz 60s, no damage
Insulation Resisance	Primary - secondary, core and winding 1000 VDC is more than 100 m Ω
Protection Grade	IP00，can be customized according to customer requirements
Winding Material	Copper/Aluminm
Noise	≤50dB
Product Size	According to customer requirements
